NILE 06 4×4 Heavy Duty Chassis

6-Ton Heavy Duty Off-Road Chassis

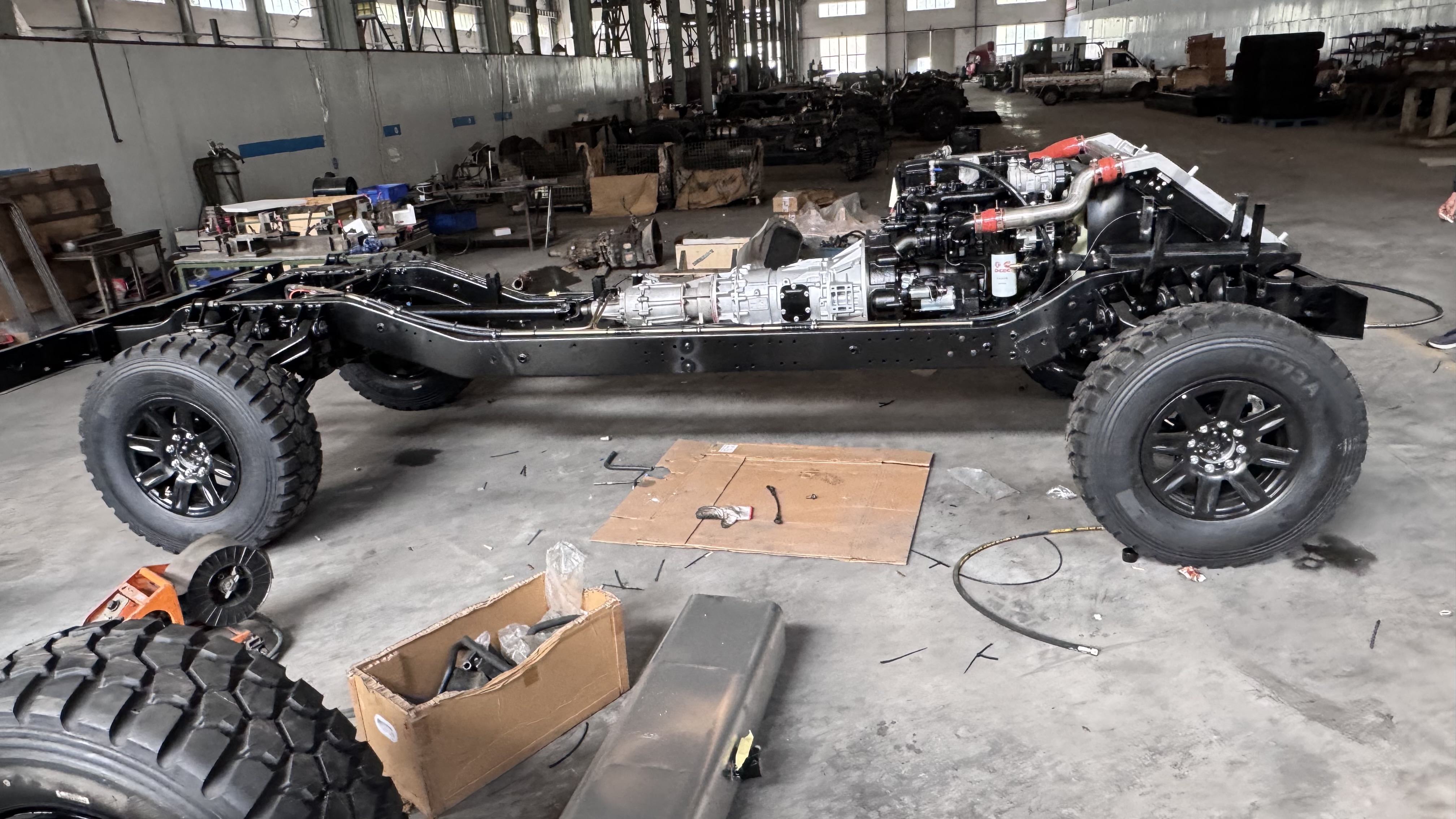

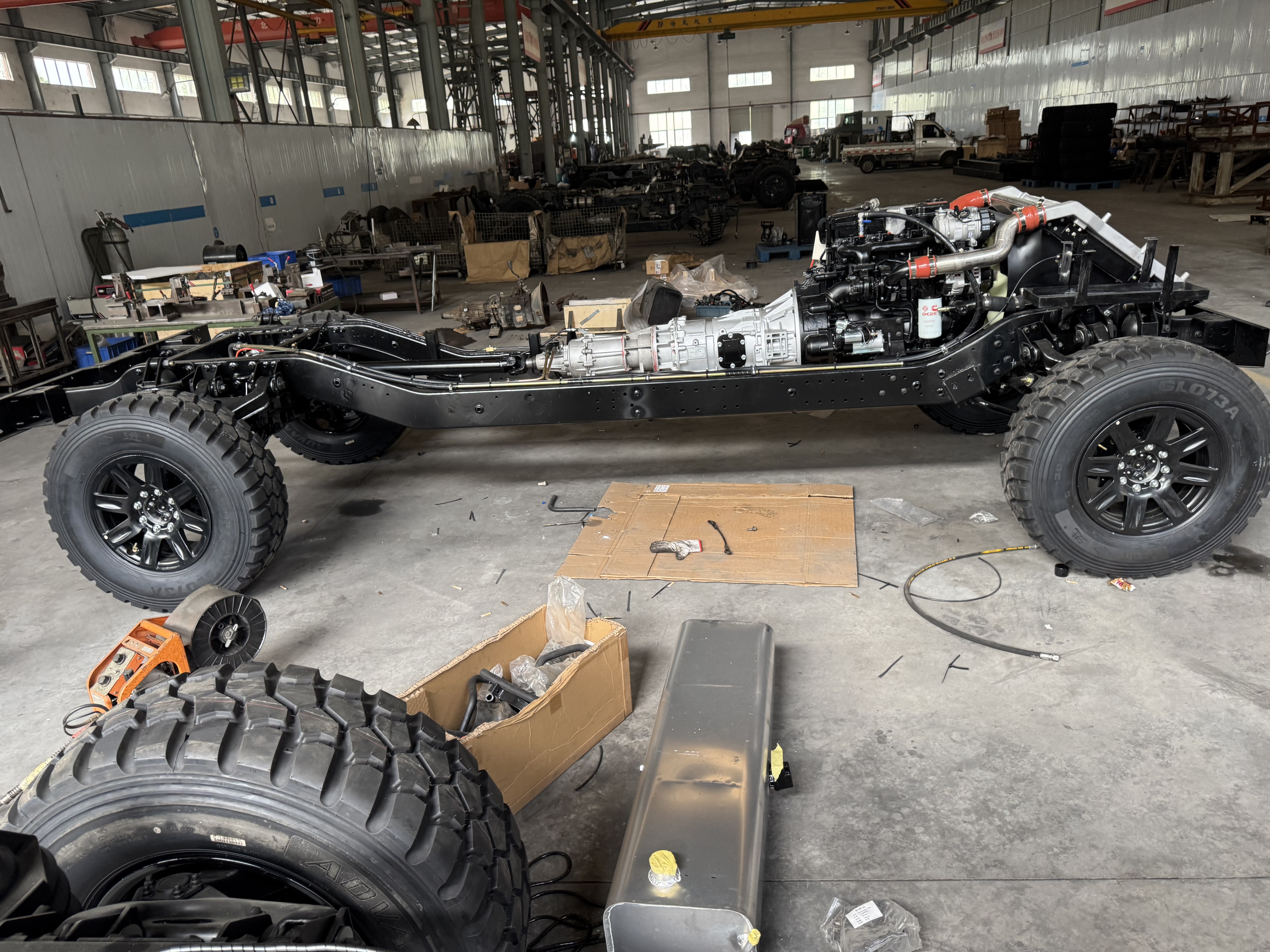

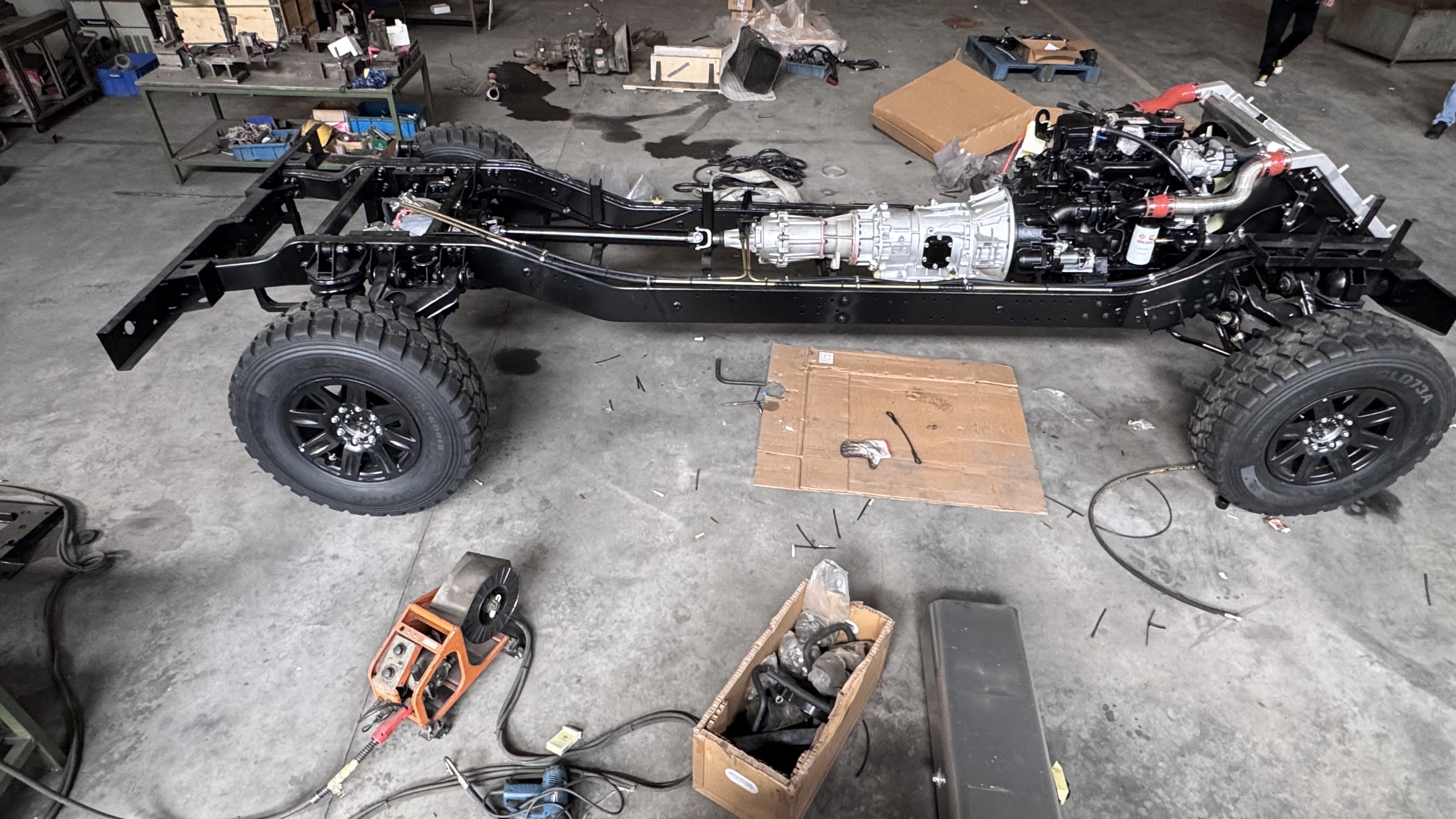

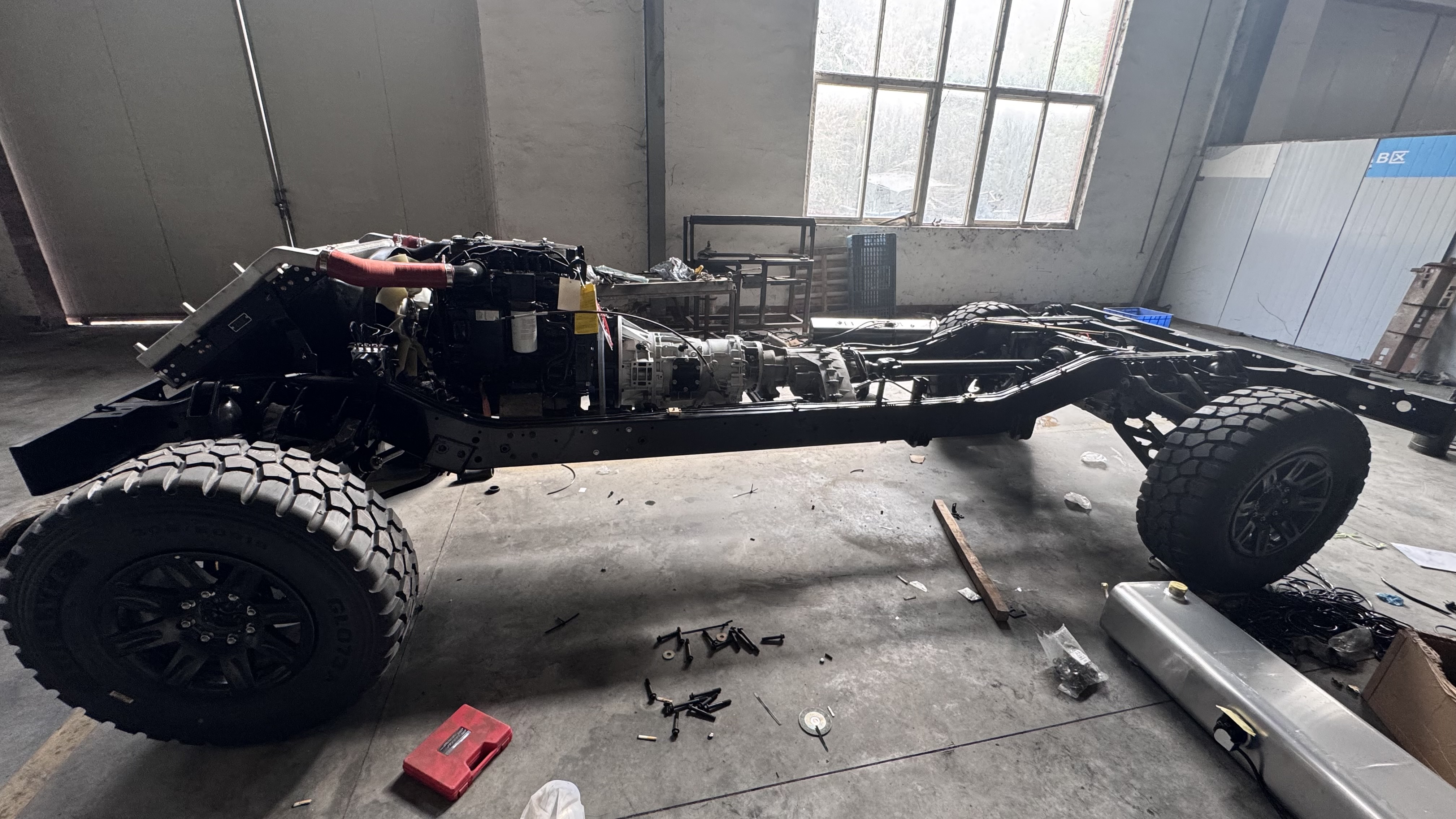

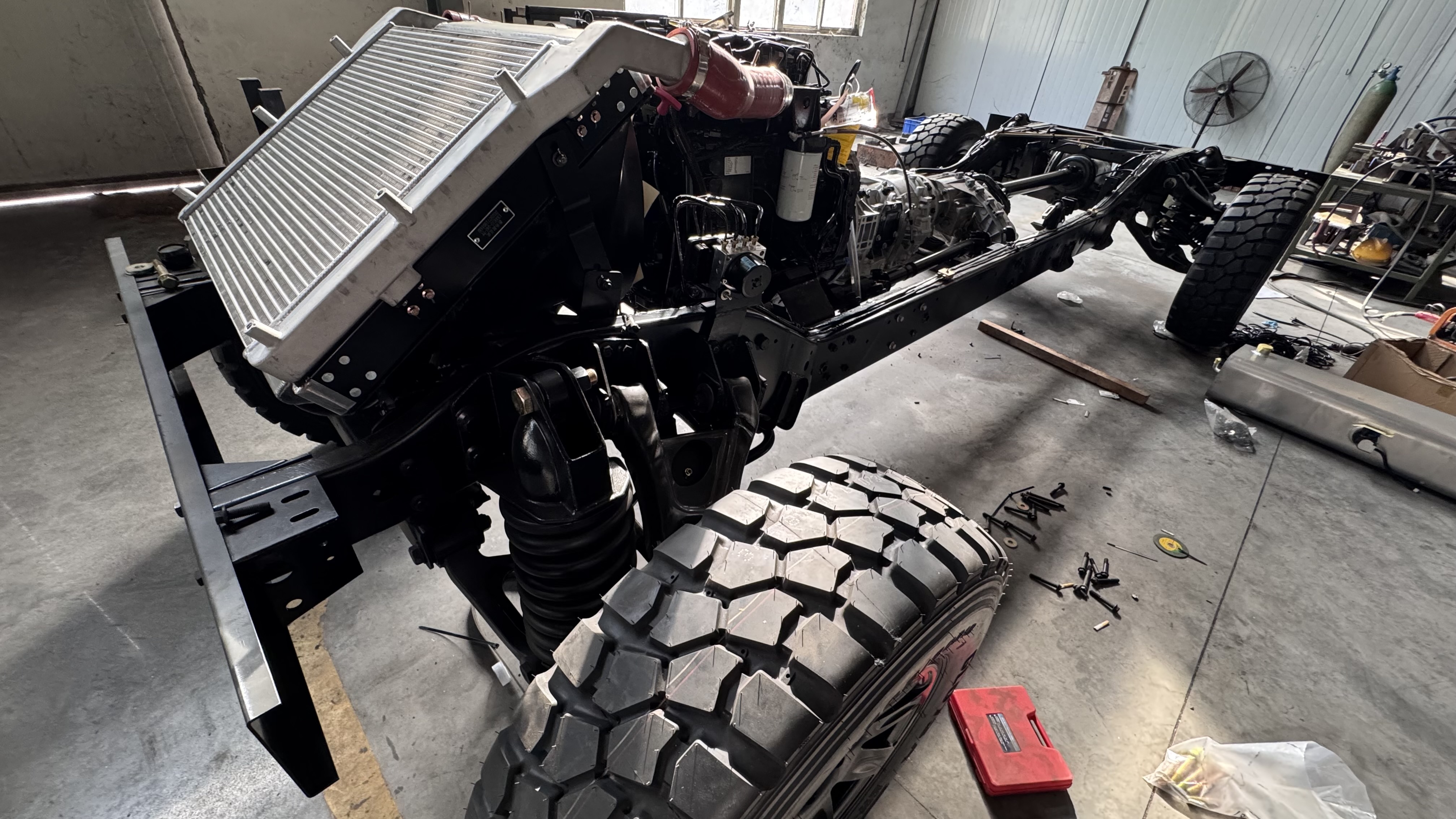

A 6-ton 4×4 heavy duty off-road chassis with Cummins diesel engine, Allison automatic transmission, and independent suspension for maximum mobility in demanding conditions.

Request Quote Quick Inquiry View Specifications

Key Specifications

115 km/h

Top Speed

6 ton

GVW

500 + km

Range

200 HP

Engine Power

Overview

Design & Configuration

Built to match the requirements of industrial standards and tough terrain, creating a lightweight yet exceptionally durable heavy duty platform optimized for demanding applications.

Tested for Extreme Performance

Has undergone comprehensive performance testing, pushing the limits of suspension, handling, acceleration, and maneuverability to ensure peak reliability under challenging conditions.

Engineered with Modern Technology

Developed using the latest scientific and engineering methods. Combines technical precision with robust mechanical design to achieve high endurance and operational efficiency.

Chassis Specifications

Vehicle Type	6-ton 4×4 heavy duty off-road chassis
Overall Dimensions (L×W×H)	4997 × 2134 × 1960 mm
Maximum Length	6,000 mm
Maximum Height	3,750 mm (including dome)
Maximum Width	2,425 mm
Gross Vehicle Weight	6,000 kg

Curb Weight	3,500 kg
Payload	2,500 kg (after armor)
Wheelbase	3,200 mm (minimum 3,300 mm)
Approach Angle	72° (minimum 70°)
Departure Angle	34°

Powertrain

Engine	Cummins Diesel Engine (140-200+ kW)
Power	Approx. 200 HP
Torque	Minimum 147 kg-m
Transmission	Allison Automatic
Drivetrain	Full-time 4×4 with differential locks

Aspiration	Intercooled turbocharged
Fuel System	Electronic injection with water separator filter
Emissions	Minimum EURO VI
Top Speed	100-130 km/h (115 km/h rated)
Range	400-800 km (minimum 500 km)

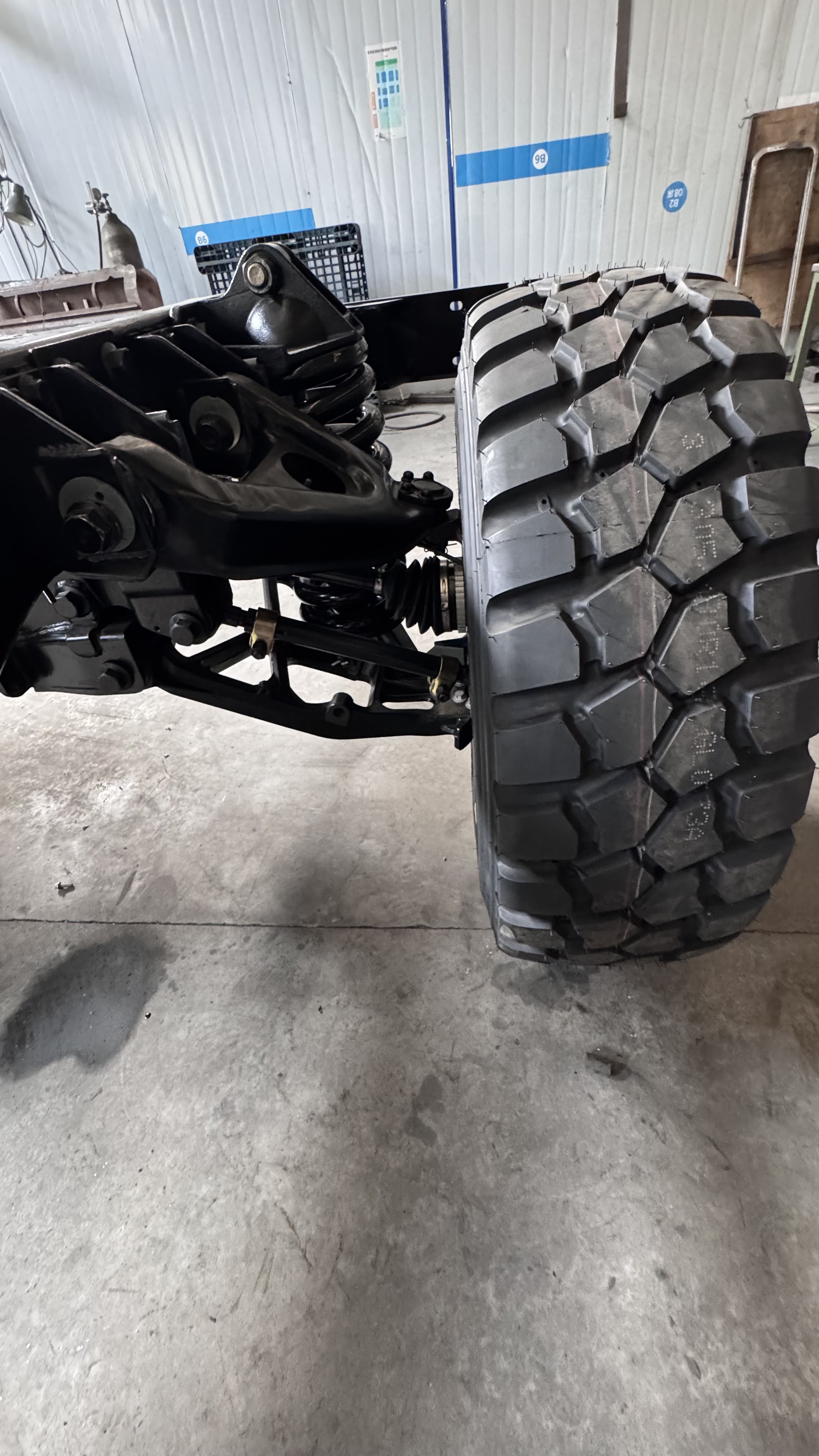

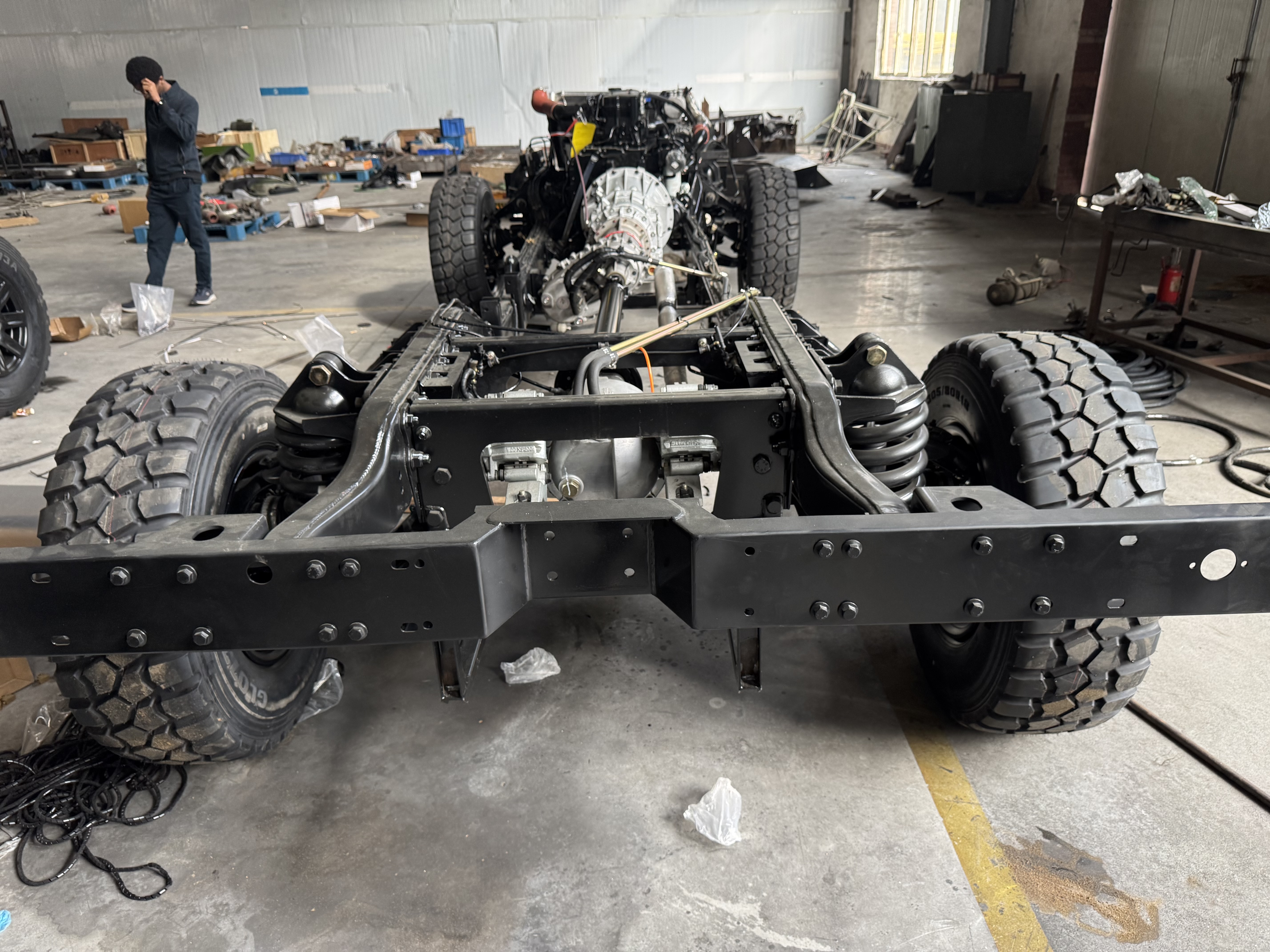

Suspension & Running Gear

Suspension Type	Independent double-wishbone (front & rear) or heavy-duty solid axle
Front/Rear Suspension	Semi-elliptical leaf spring with pneumatic bag system + pressure control
Suspension Capacity	Minimum 3,000 kg (rear)
Axle Load Capacity	3,000 kg per axle
Braking System	100% pneumatic with ABS, HD brakes, pneumatic parking
Tires	37×12.5R16.5/17 run-flat (4 + 1 spare)
Tire Load Capacity	1,500 kg per tire
Rims	Seven R17-inch with run-flat protection

Protection & Durability

Vehicle Versions

Soft-top, hardtop, and reinforced versions

Structural Protection

Heavy duty reinforced structure (industrial rated)

Floorboard Protection

Full-length reinforced steel (cabin + rear)

360° Protection

Sealed gaskets/joints between structural plates

Durability Rating

Brinell hardness 300+ (kp/mm²)

Access Points

6 service points + 1 rear access

Roof Hatches

Two reinforced hatches, 78×78 cm with secure locking

Seating & Crew

Front Crew	Operator + co-pilot with central observer seat
Passenger Compartment	3 passengers per side, facing inward
Front Cabin Seats	Water-resistant with adjustable headrests
Observer Seat	Central seat with adjustable height
Multi-purpose Use	Stretcher transport, supplies/equipment transport
