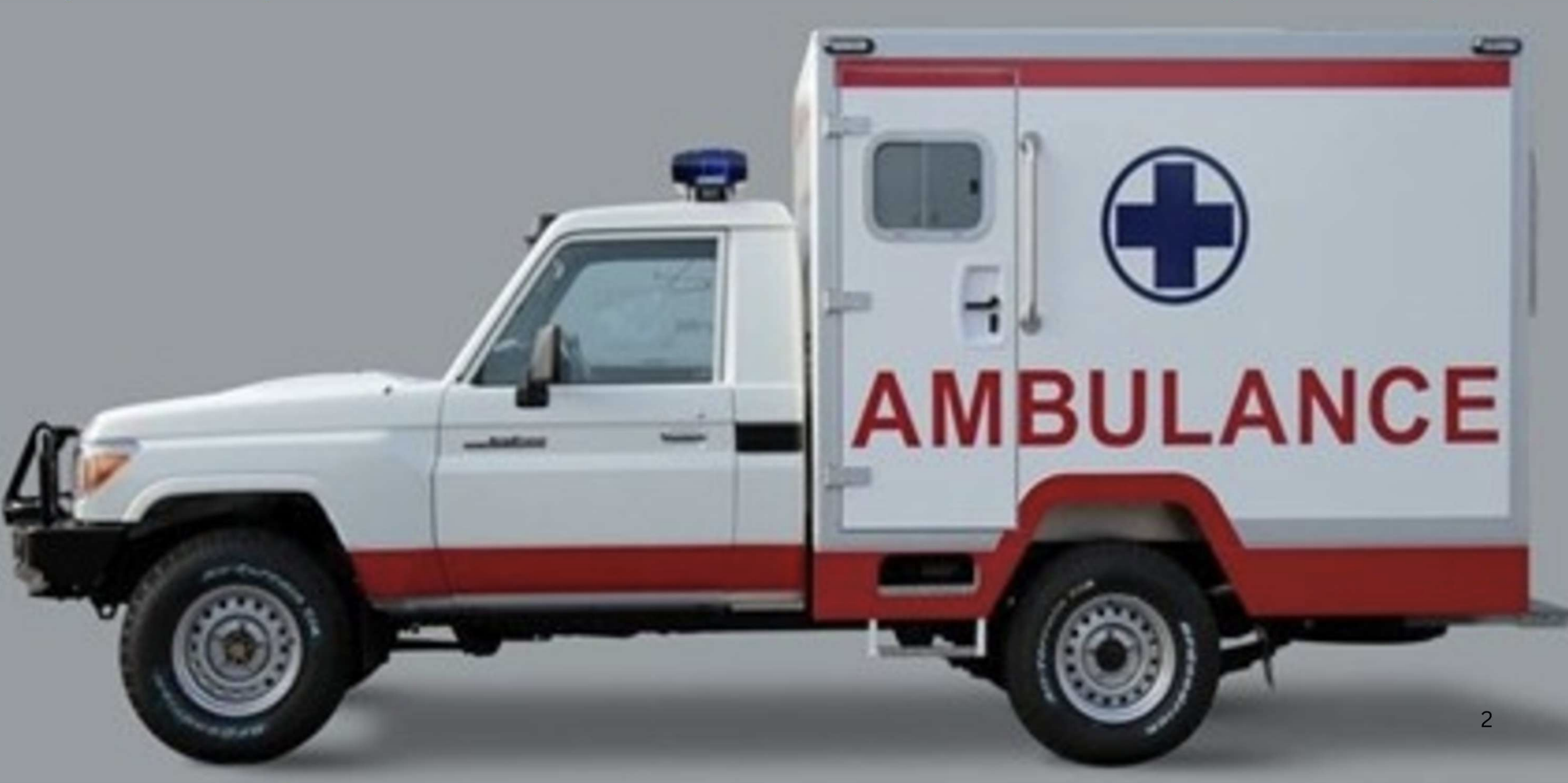

DANIA Class 1 Ambulance

Reliability and Comprehensive Care

A fully equipped Class 1 ambulance with weather-proof, sound-proof, and fire-resistant construction, featuring a comprehensive medical equipment suite for emergency response.

Request Quote Quick Inquiry View Specifications

Key Specifications

Class 1

Certification

High-Roof

Design

50mm

Panel Thickness

2000W

Inverter Power

Overview

The DANIA Class 1 Ambulance is fully equipped to Class 1 standards, creating a safe and effective environment for both patients and medical staff.

Robust Construction

Weather-proof, sound-proof, and fire-resistant design for reliable performance in all conditions.

Optimized Layout

High-roof design provides ample space for medical personnel to work effectively during emergency response.

Complete Equipment

Comprehensive medical equipment suite supporting effective patient care from scene to hospital.

Key Capabilities

Fully Compliant

Fully equipped to Class 1 standards, creating a safe and effective environment for both patients and medical staff.

Weather-Proof Construction

50mm sandwich panel, reinforced with MS rods or pipes (rust proof) for all-weather reliability.

Sound-Proof Design

Insulated construction reduces external noise for patient comfort during transport.

Fire-Resistant Materials

All materials selected for fire resistance and safety compliance.

High-Roof Configuration

Ample space for medical personnel to work effectively during emergency procedures.

Complete Medical Suite

Comprehensive equipment supporting effective patient care from scene to hospital.

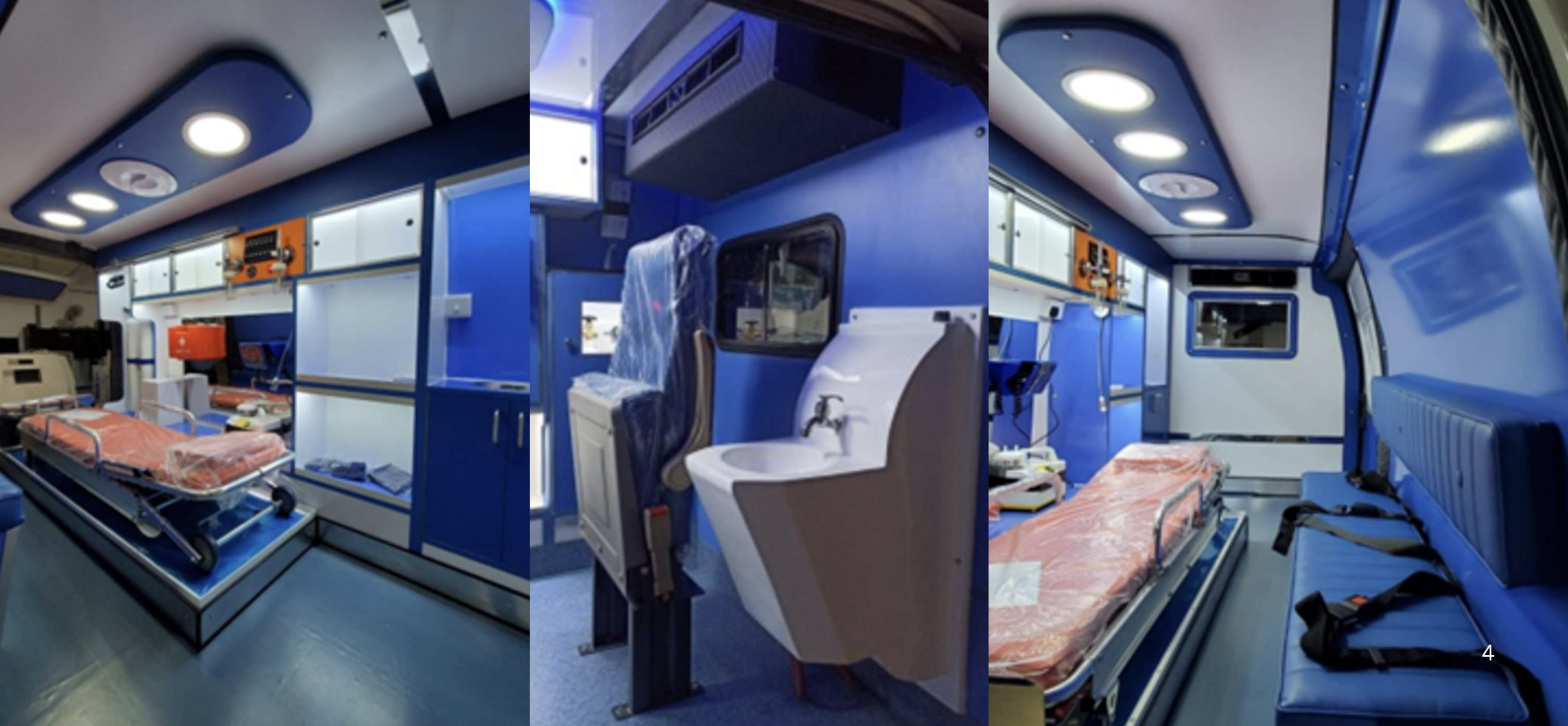

Patient Compartment Construction

Outer Body	Weather-proof/sound-proof/fire-resistant 50mm sandwich panel, reinforced with MS rods or pipes (rust proof)
Medical Cabinet	Water proof foam board (18mm thickness)

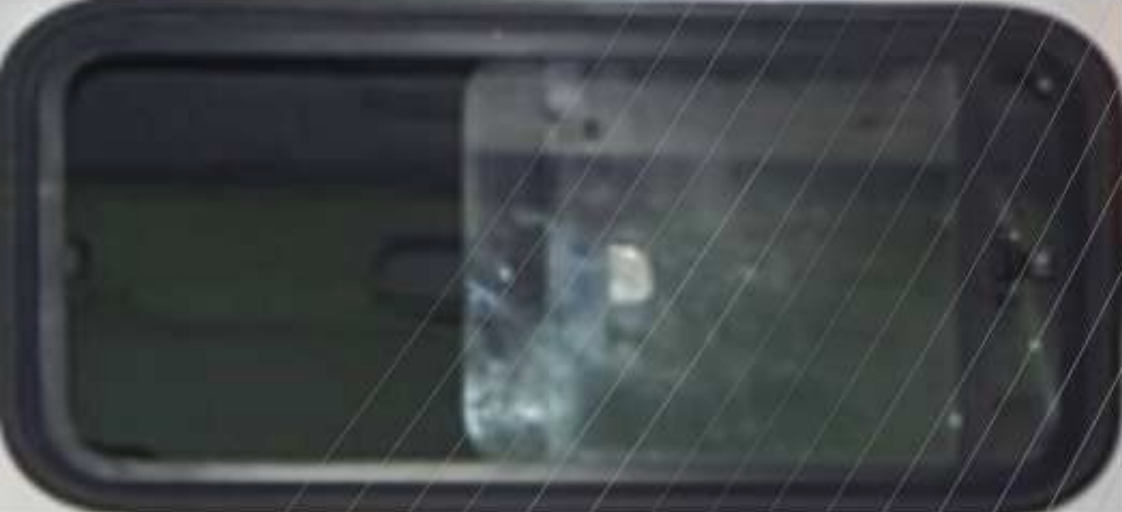

Partition	Poly fiber sheet with sliding glass window for communication
Attendant Seat	Bench type fitted with seat belts and storage space

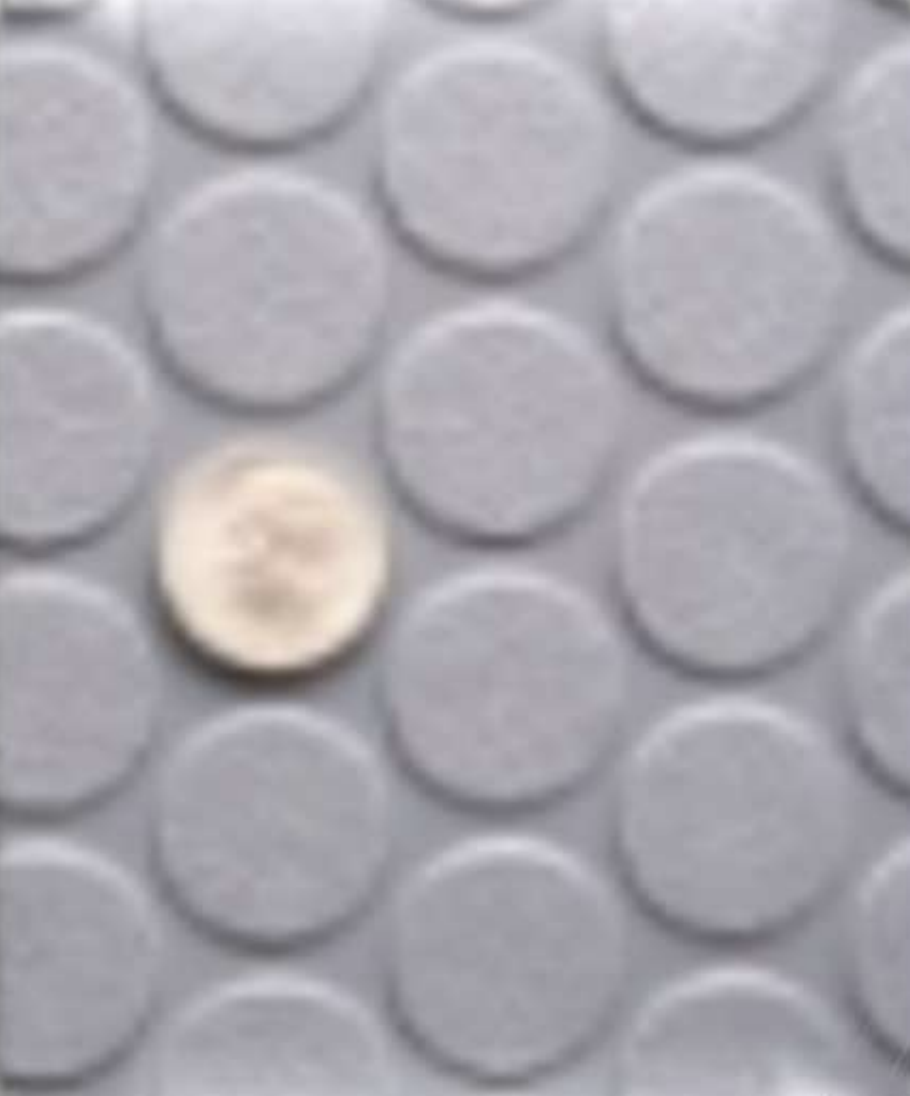

Floor	Marine plywood with anti-skid PVC matting, washable, non-slip, non-stain vinyl coating
Folding Seats	Facing side of patient compartment

Seating & Interior

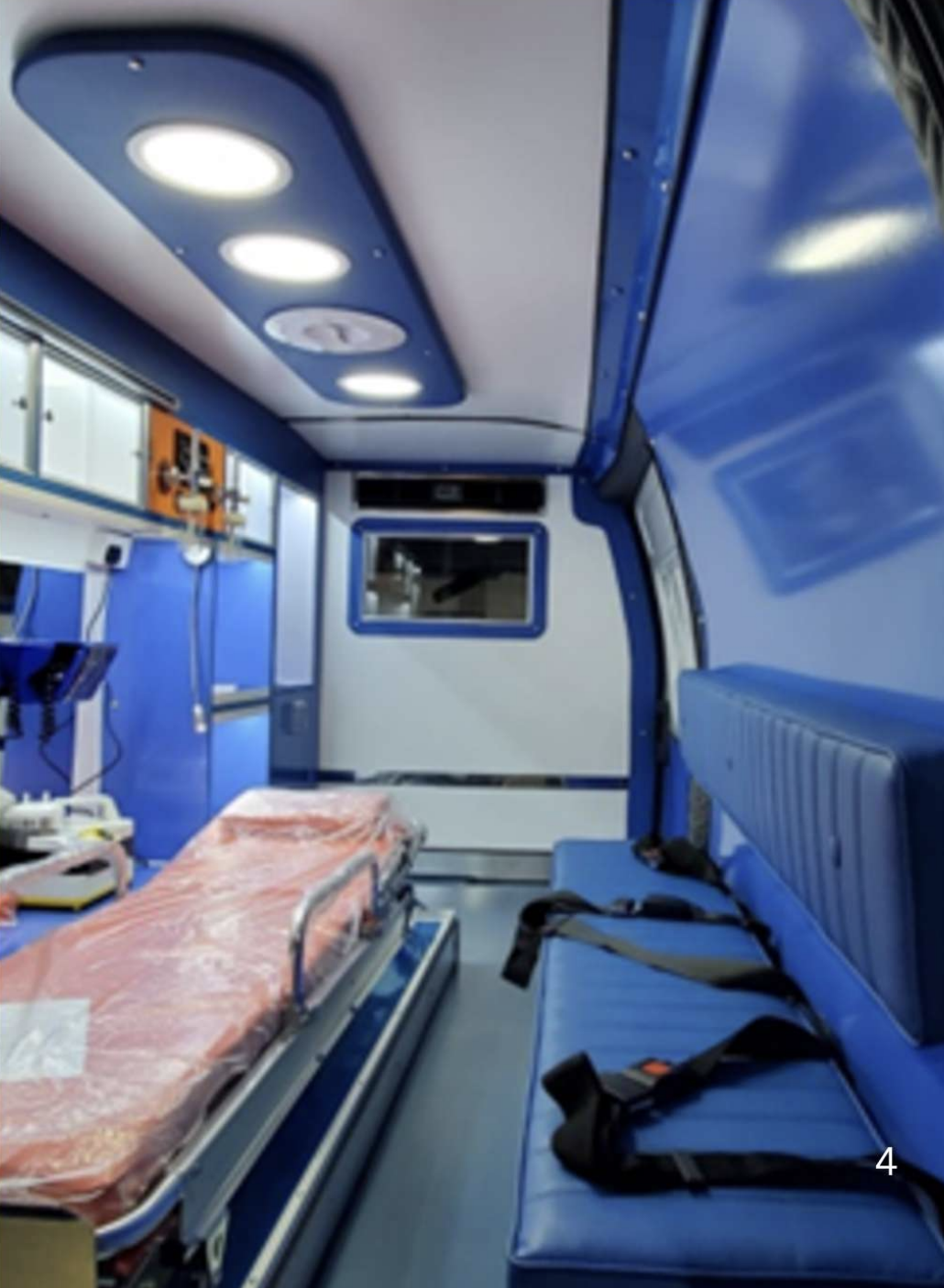

Sitting Bench	3-4 person capacity, poly fiber, 3" PU foam, seat belts, leather cover, under-bench storage
Single Crew Seat	Fixed position with seatbelt, headrest, high quality leather/fabric covering

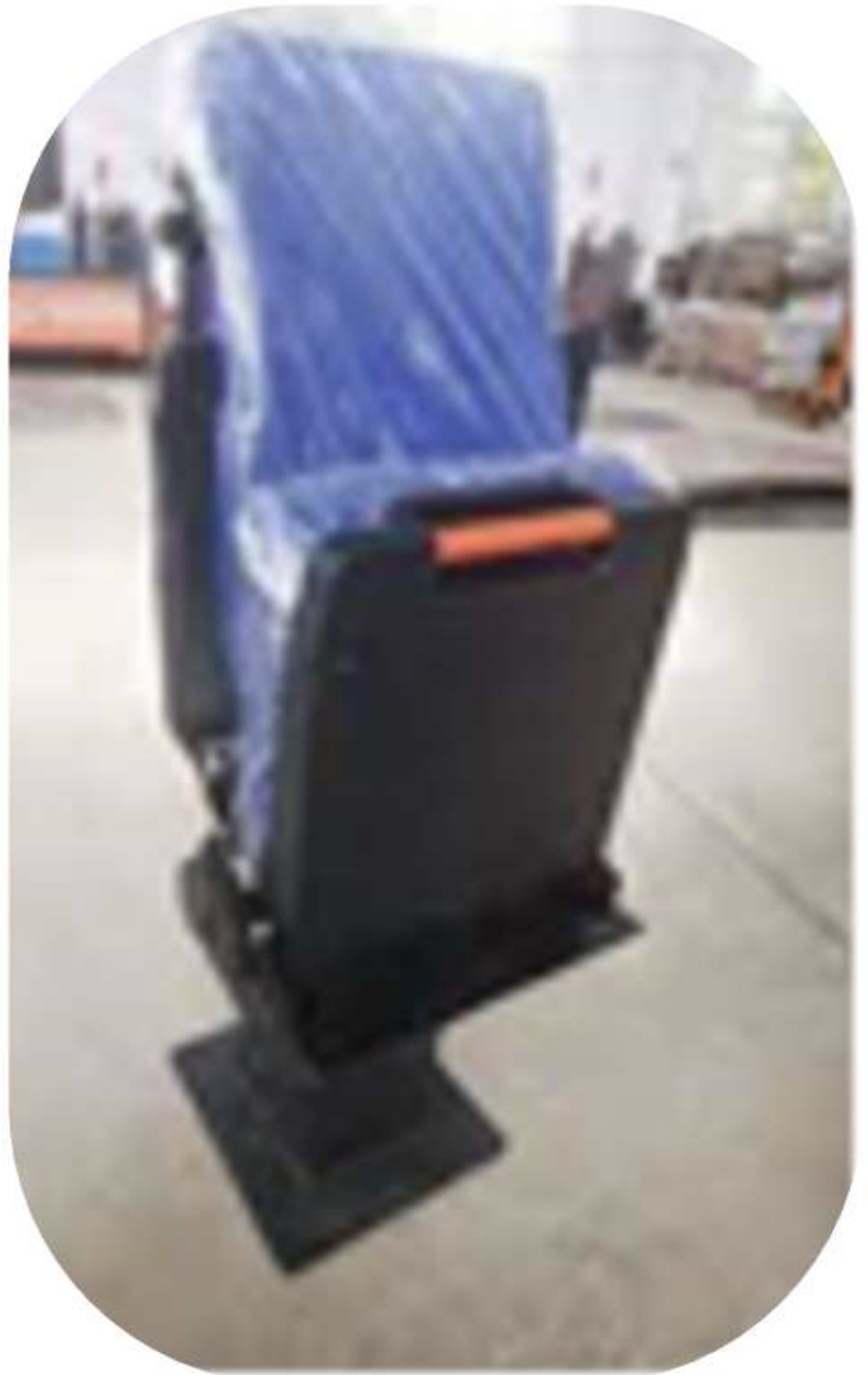

Technician Seat	Rotating seat between partition and stretcher

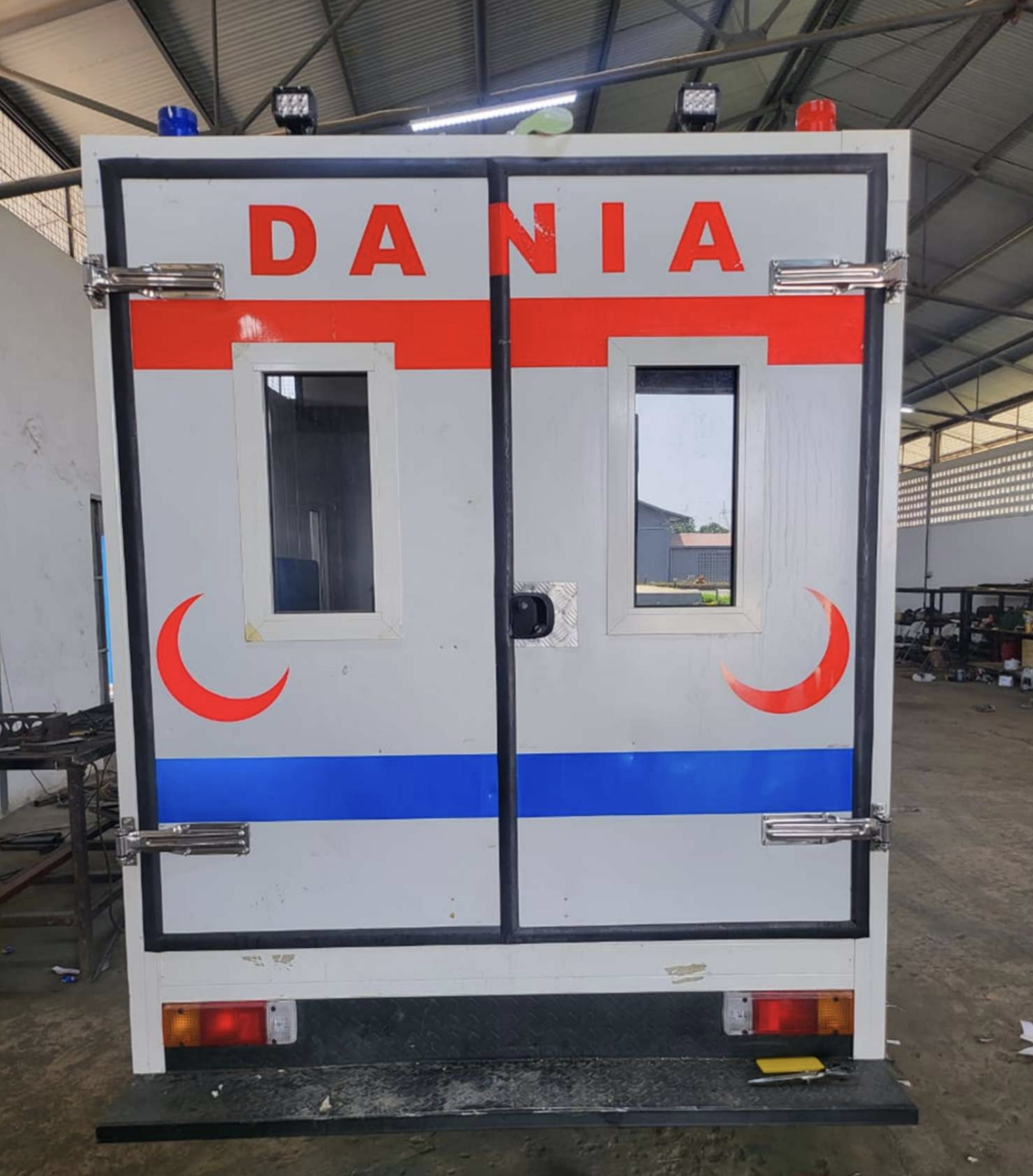

Patient Compartment Windows	2× rubber mount side windows (strip frosted), 2× tail door windows (fully frosted)

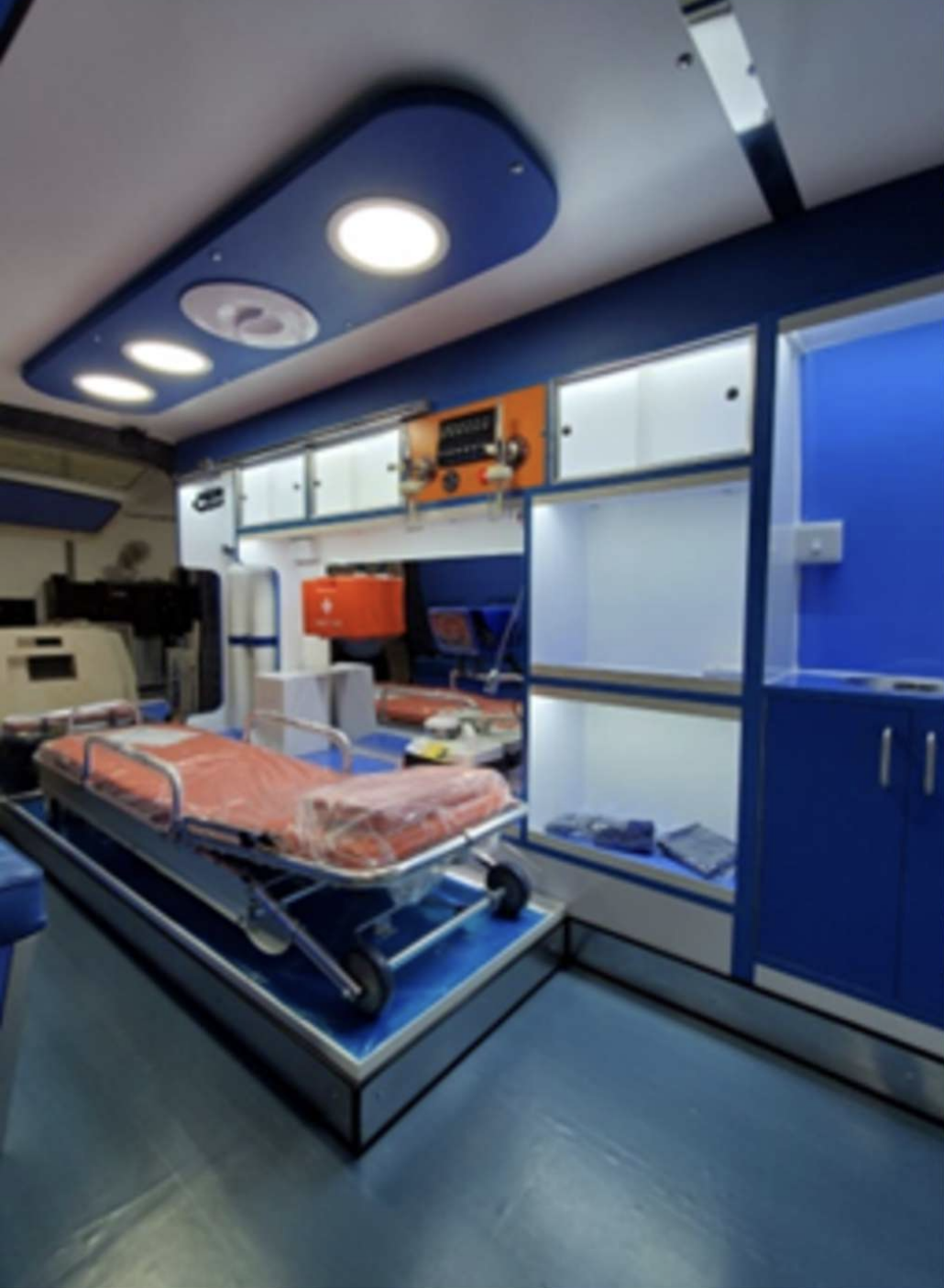

Medical Cabinet & Storage

Cabinet Material	High quality poly fiber - non-stain, scratch/water/rust proof
Cabinet Hardware	Self-retaining recessed S.S handles, self-closed surface hinges (imported)
Oxygen Section	1 MF sized cylinder capacity, steel brackets with rubber paddings, plex glass window door
Disposables Section	3-4 shelves for containing disposables
Suction Unit Compartment	Poly fiber design with round edges and specialized lock system
Side Utility Panel	Right-sided poly fiber with oxygen outlet, tissue & gloves compartment

Electrical System

Power Inverter	2000 watt (China CE/FDA approved)
Electrical Wiring	Fire-proof 10mm, 8mm, 6mm system, no joints or taping
Fuse System	Separate fuse boxes for all connectors
Electrical Outlets	(2) 12V, (2×220V) & 01 USB

Control Panel	With breakers (China CE/FDA approved)
Room Lighting	12V LED type room lamp
Loading Light	Rear loading area illumination
Examination Light	Flexible examination light (China CE/FDA approved)

Warning Lights & Devices

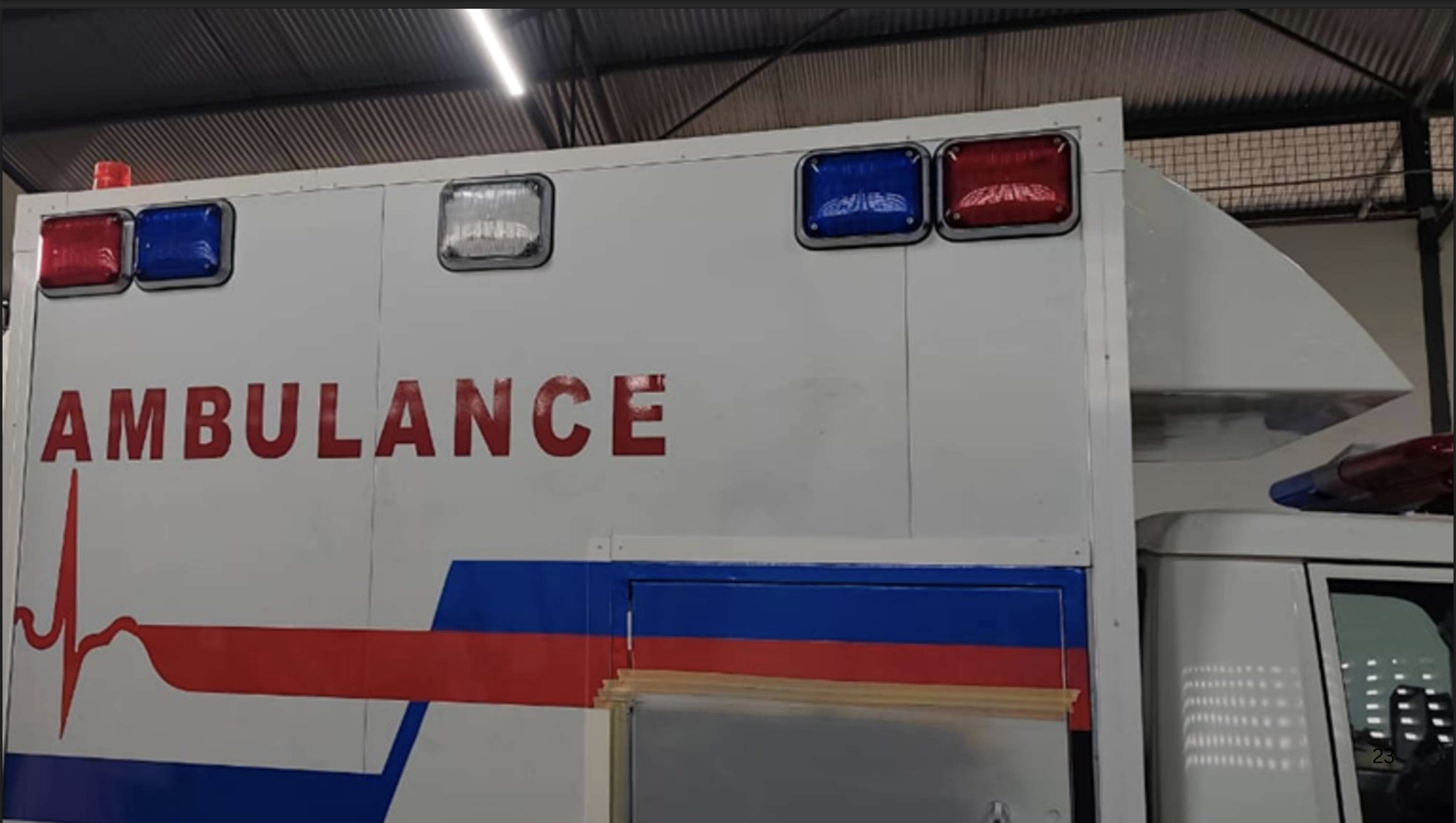

Emergency Light Bar

Blue/red/yellow LED bar on top

Siren System

Electric siren amplifier & speaker with microphone, PA system 150 watts output

Beacon Lamps

Rear 2 no. multi-flashing beacon lamp (blue/yellow/red LED type)

Search Lights

2 search lights each on back, left & right sides

Interior Lighting

Eco LED internal lighting for rear cabin

Spoilers

Specialized spoilers on driver's cabin with customized emergency lights

Climate & Ventilation

Air Conditioning	Extension from existing vehicle AC (non-heating)
Roof Ventilator	With electric fan

Power Socket

12 volt power socket with USB point

Medical Equipment

Main Stretcher

Dimensions: 6'3" × 1'9" × 3' (standing), 1' height when collapsed

Automatic loading mechanism
Stainless steel / aluminum alloy frame
Adjustable head section
6-rubber wheel system (4+2)
Thick high-quality PU foam mattress with washable PVC-coated Rexene seal
Pillow, safety belts & side guards
Detachable IV rod
S.S sheet on floor under stretcher

Secondary Stretcher (China CE/FDA approved)

Manual, foldable design
Backup capacity for multi-patient scenarios
Easy access and deployment

Oxygen Therapy Set

48 cubic feet oxygen cylinders, tested and certified
High pressure piping with brass sockets & connectors
Imported pressure regulator
1 outlet, 1 flow meter, humidifier, face masks

Complete Oxygen Kit (China CE/FDA approved)

1× oxygen cylinder, steel, 10L with valve
2× oxygen regulator
2× oxygen flow meter and humidifier
2× oxygen outlet
Oxygen system related hoses (Italy)
Oxygen mask paeds & adult
BVM adult, infant & child

Vital Signs Monitoring

Transport patient monitor – 5 parameters

Cardiac Emergency Response

Defibrillator – ViVest Powerbeat X1AED (China CE/FDA approved)

Assessment Tools

Stethoscope
Sphygmomanometer – wall mounted
BP apparatus – portable
HEMOCU series hemoglobin meter with reagents
Digital forehead thermometer
Glucose meter kit (measures in 5 seconds)
Pen light + tongue depressor holder
Babinski reflex hammer

Medication Delivery

Infusion Pump AV-200X
Infusion bottle holders (for 2 bottles)
Intravenous feeding hook

Respiratory Therapy

Aerosol Nebuliser with piston compressor, portable
Supplied with adult and child mask, T connector, mouthpiece, nasal nozzle, 100cm hose, 5 spare filters

Medical Suction (China CE/FDA approved)

Portable, rechargeable (AC/DC)
Capnograph

Mackintosh battery-powered laryngoscope with 4/1 blades and case
Medical suction – portable, rechargeable AC/DC (China CE/FDA approved)
Capnograph

Trauma Equipment

Plastic spine board
Air splints – 1 set of inflatable splints for upper and lower limbs
Cervical collar – 2 sizes
First aid box for 50 persons (box/bag type)

Safety Equipment

Fire Extinguisher	2 kg (ABC/dry powder type), side wall fixed with bracket (China CE/FDA approved)
Emergency Exit Hammer	For emergency glass breaking
Sharps Container	Hazardous and sharps item container (China CE/FDA approved)

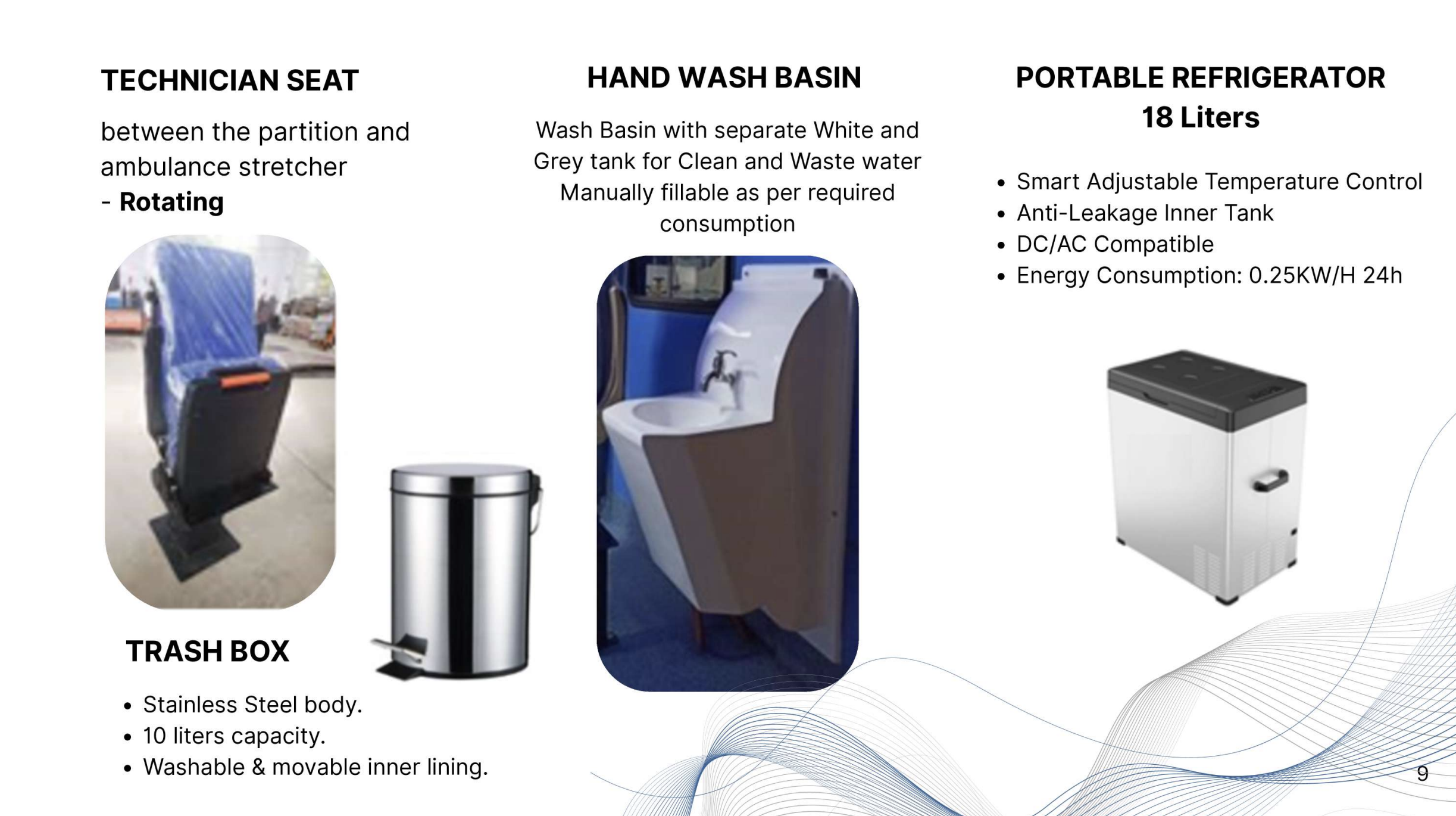

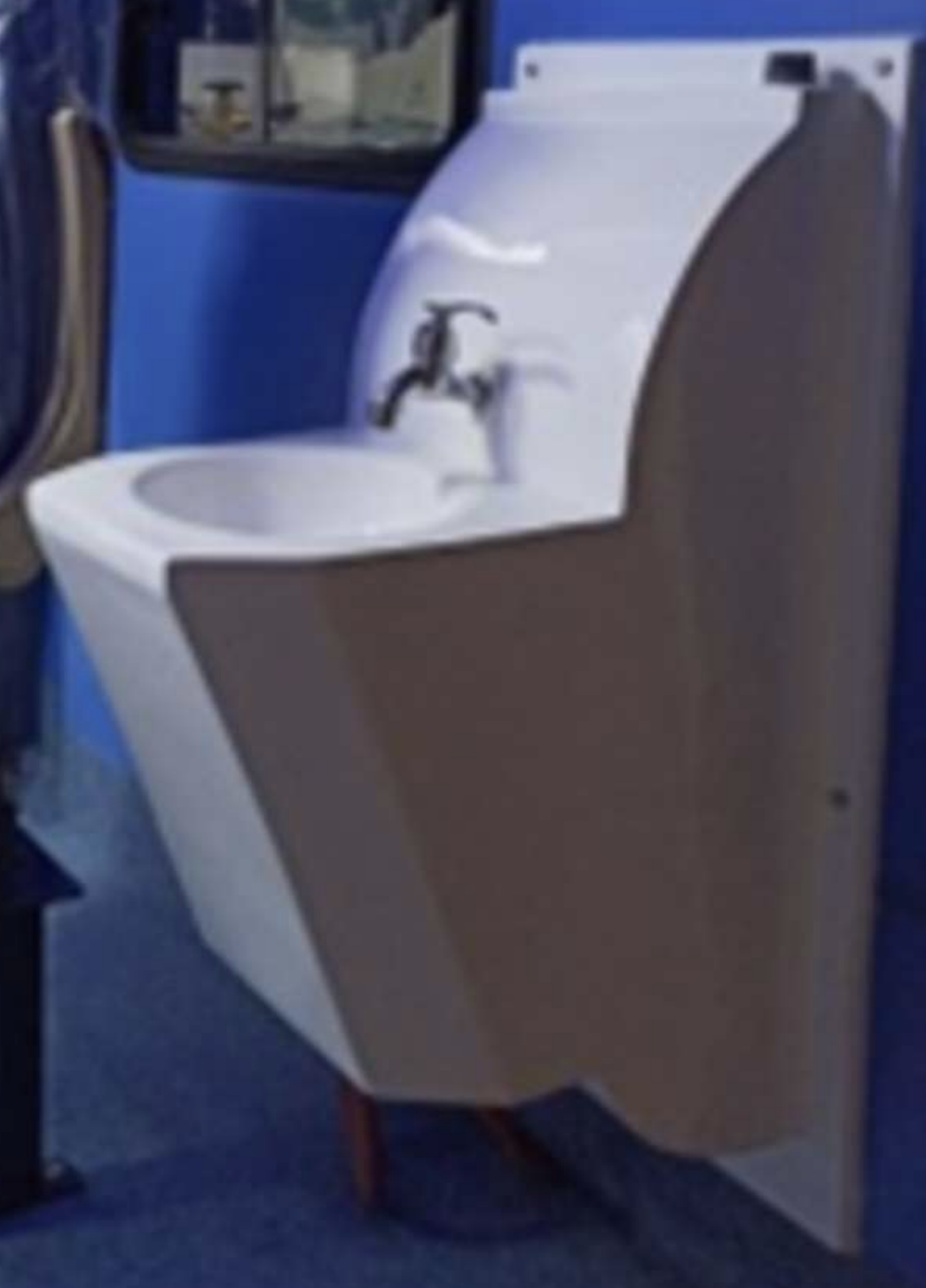

Hand Wash Basin	Separate white and grey tank for clean and waste water, manually fillable

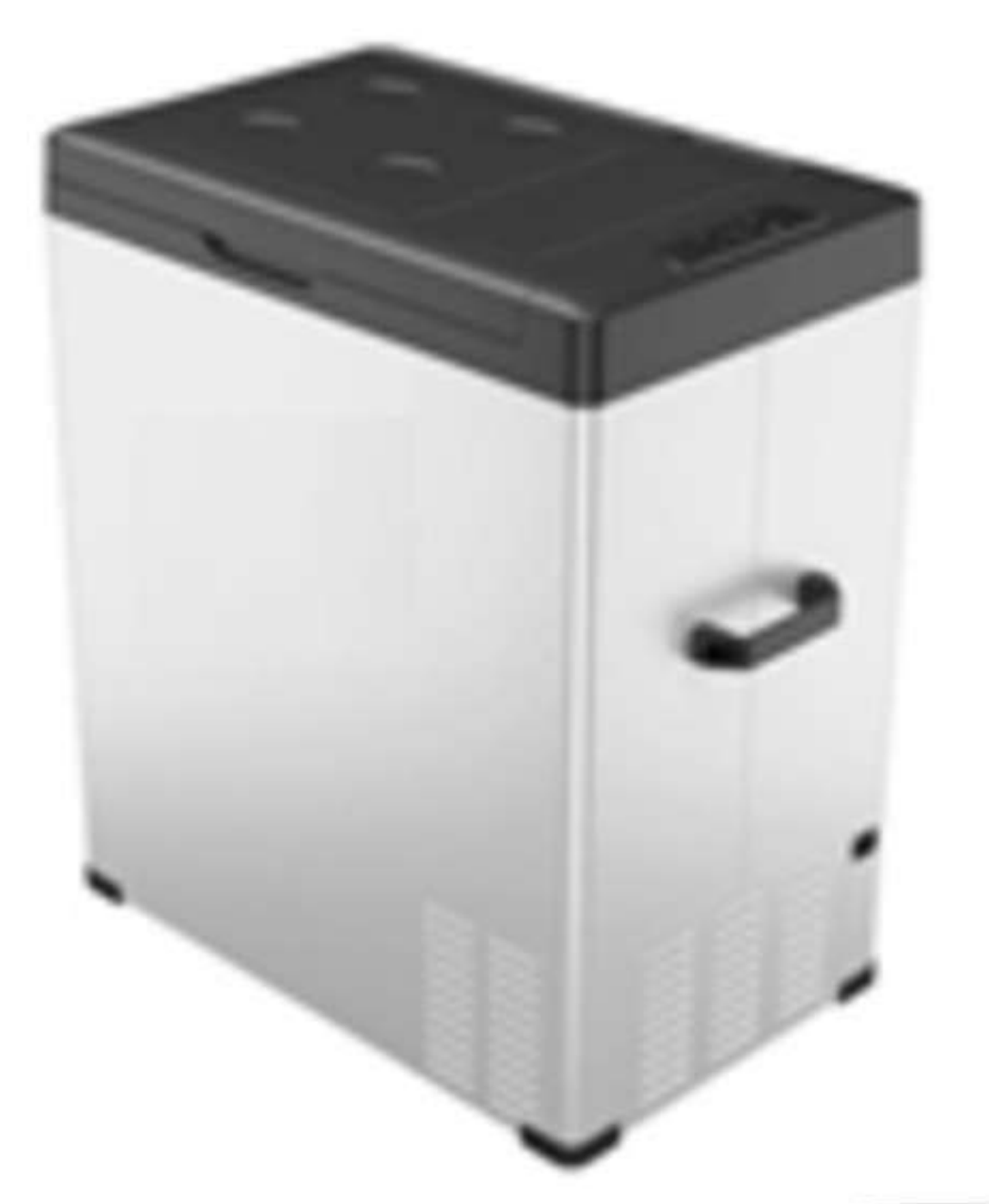

Portable Refrigerator	18 liters, smart temperature control, DC/AC compatible, 0.25 kW/h (24h)

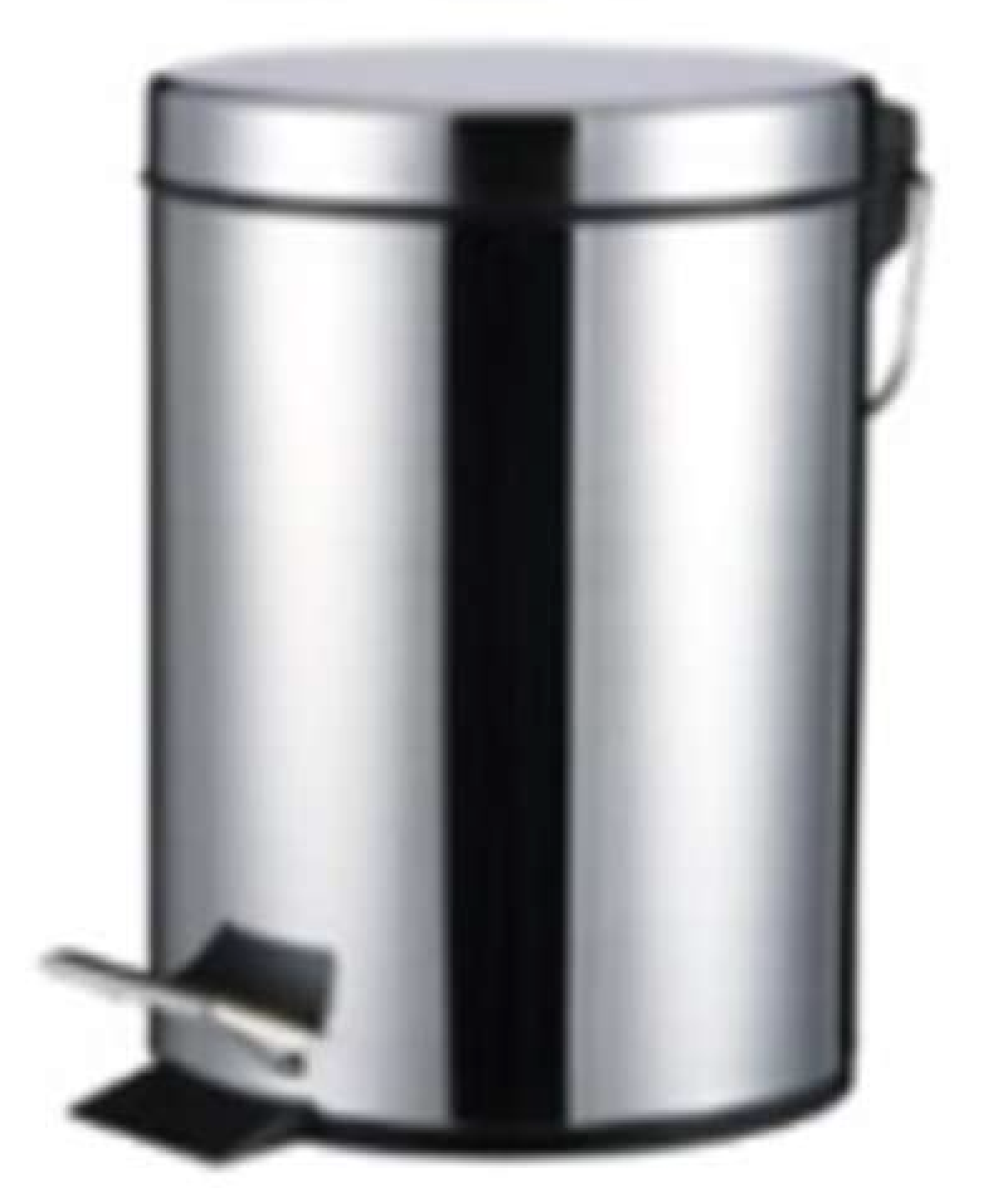

Trash Box	Stainless steel body, 10 liters capacity, washable & movable inner lining

Exterior Graphics & Safety

Reflective Signage	Red 250mm 'A' on rear door windows, reflective yellow waistband with red borders

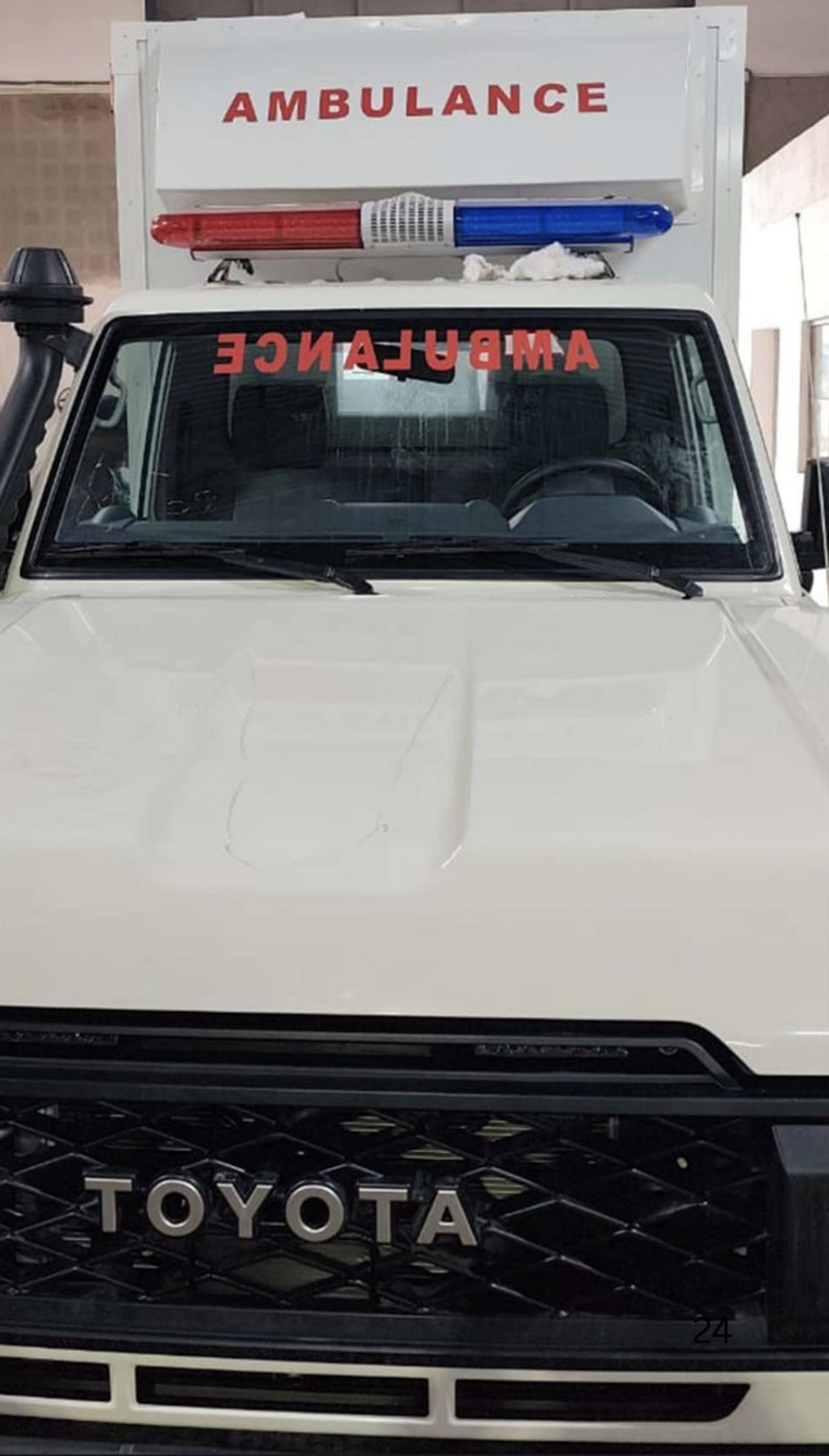

Ambulance Markings	Mirror image 'Ambulance' on front, word on front & back
Institution Details	Name of institution and emergency number
Vinyl Stickers	All panel 'A' category imported vinyl stickers (reflective)
Safety Equipment	Reflective road safety triangle, 16" collapsible safety cone
Rear View Camera	With parking sensors
